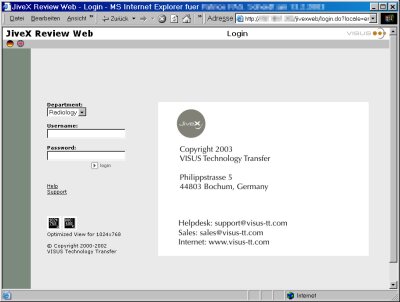

LoginThe start screen provides a login mask to the system. You can also select your language or display the online help and support information.
Select a DepartmentUsing the department drop down box, you can select the database of a department you wish to connect to. If there is only one image database in your network it will automatically appear in the drop down box and must not be modified. Name and PasswordEvery user to the system requires account login data for each database. If you have not recieved your login data yet, please contact yout system administrator. The login consists of a user name and a password, which should be entered in the corresponding fields. When done, click on login, to start the authentification process. If your login succeeds you will be automatically forwarded to a query input mask for searching and browing patients ans studies. If the authentification fails, a dialog displaying an error message will pop up. Please make sure you typed your user name and password correctly. Name and password are case sensitive. In case the login does not proceed, please contact your system administrator. Each login is limited in time. In other words, your login session is invalidated after a (predefined) certain period of time without user interaction. Thus, you will have to re-login. Please note that you have to restart your last image request. Change LanguageClicking on one of the buttons showing the flags will toggle the current language. This function is available throughout the application, buttons will be in the top row of every screen. Display Online HelpUse the link Help to get directly to the online help. A new browser window displaying the help will be opened to save your current inputs. The online help is available through a link from every screen of the application. Display the Support ScreenThe support scrren contains information about error detection and -removal. Your can find phone number and address for contacting the helpdesk. Please click on the link Support. A new browser window will open automatically. The support link is available from every screen of the application. QueryThe query screen offers functions for searching and selecting patients. Query data can be entered in the upper part of the input mask. Below, the results of your query will be displayed clearly arranged in a table. On the left panel you can find buttons for navigating through the result of your query.

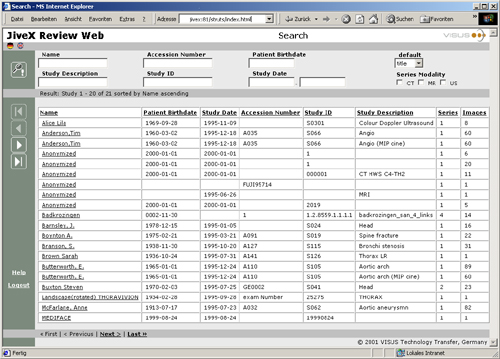

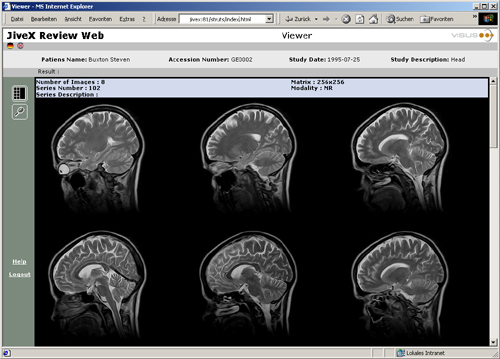

Perform a QueryThe input fields of the query mask may be created and arranged (by your system administrator) at your wishes. All database columns are available for design. Moreover, it is possible to predefine presets of standard querys which are available through the corresponding menu. When done with the input of your query, please click on Search in the navigation panel. Display query resultsQuery results are displayed in the table in the lower part of the screen. Columns of this table may be created and arranged (by your system administrator) at your wishes. It is possible to sort the table rows ascending or descending by column. To sort the table, simply click on the headline of a column as search criteria. A subsequent click on the same headline inverts the sort sequence. If the result list of your query contains more rows than one table page can display, the table will be extended to multiple pages. You can either redefine your search criteria to narrow the query result or use the navigation buttons to walk through the table pages. Selecting and Displaying a StudyTo display the images of a study, click on the patient name in a table row. This will take you to the overview mode of the image viewer. Image ViewerThe image viewer provides an overview mode with small preview, a mid mode with larger thumbnails as well as a mode to display single images in their original size. For toggling modes, please click on the corresponding buttons in the navigation panel. Overview Mode

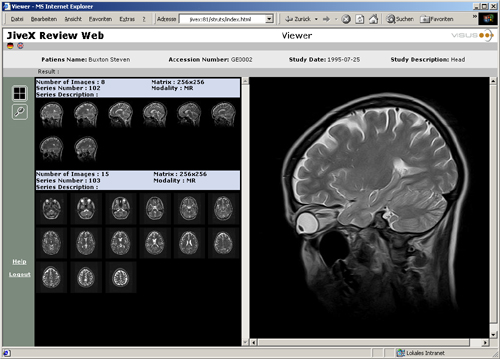

In overview mode, the left frame of the screen displays a series wise overview of the complete study using small image previews (tumbnails). A mouse click on one of the thumbnails will load a larger version of the corresponding image in the right screen area. A double click on the large image on the right hand side will open a new browser window displaying the image in it's original size. Mid Size Mode
This mode displays images of the selected study using large thumbnails. Again, a click on one of the thumbnails will open a new browser window displaying the image in it's original size. Single Image View

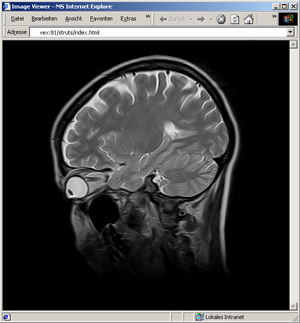

The sigle image view always displays a image in it's original size. Using the navigation buttons, you can walk through the images of a series. |
